Main Unit - Side

TOP

NP5   RS1100

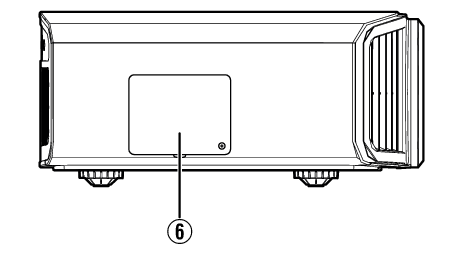

NX9_Parts_Name2-2

Lamp Cover

When replacing the light source lamp, remove this cover. (LINK)
