Dimensions

TOP

(Unit: mm)

NZ9   RS4100

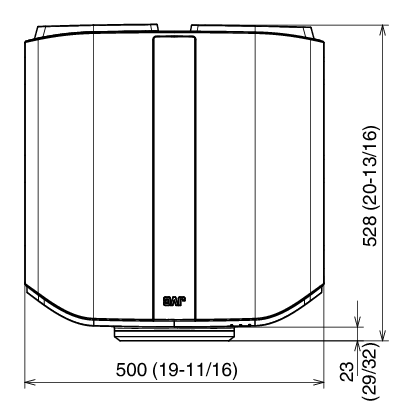

Top Surface

NZ9_Ext_Dimensions1_forK

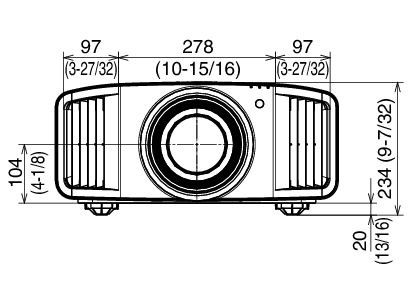

Front

NZ9_Ext_Dimensions2_forK

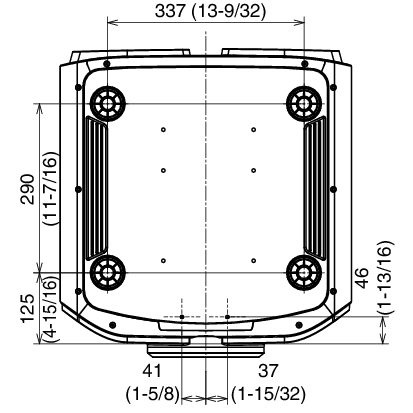

Bottom Surface

NZ9_Ext_Dimensions3_forK

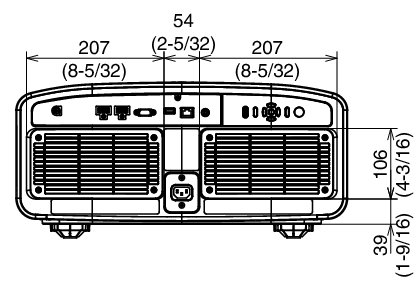

Rear Surface

NZ9_Ext_Dimensions4_forK

NZ8   NZ7   RS3100   RS2100

Top Surface

NZ8_Ext_Dimensions1_forK

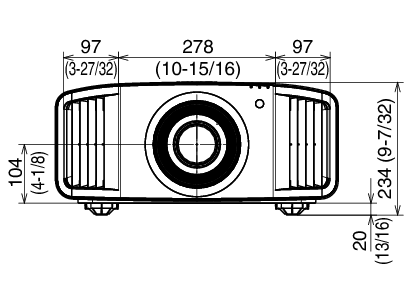

Front

NZ8_Ext_Dimensions2_forK

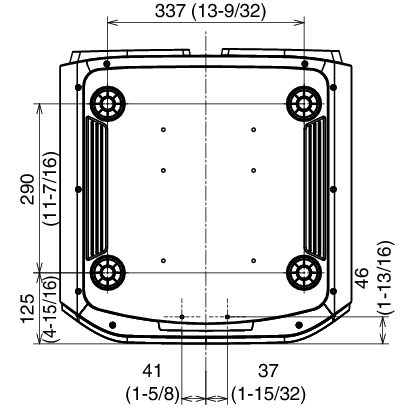

Bottom Surface

NZ8_Ext_Dimensions3_forK

Rear Surface

NZ9_Ext_Dimensions4_forK

NP5   RS1100

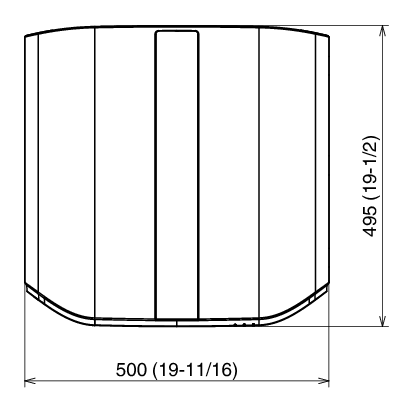

Top Surface

NP5_Ext_Dimensions1_forK

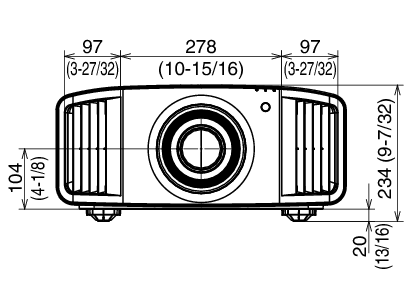

Front

NP5_Ext_Dimensions2_forK

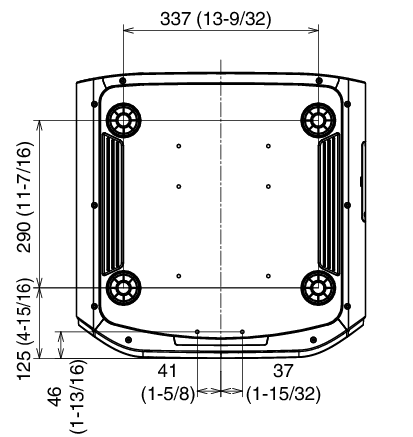

Bottom Surface

NP5_Ext_Dimensions3_forK

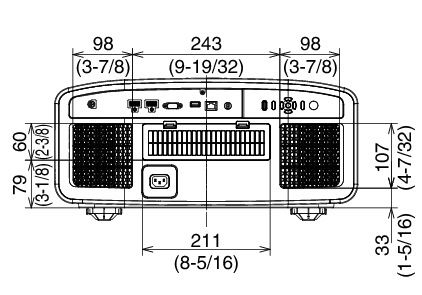

Rear Surface

NP5_Ext_Dimensions4_forK
