Getting Started |
Names of Buttons and Functions on the LCD Monitor |
The following screens are displayed during the video and still image modes, and operate as the touch screens.
Recording Screen (Video/Still Image)
Parallax Adjustment Button
Adjusts the 3D effect when 3D images are displayed on the LCD monitor.
Zoom Button
Recording/Playback Mode Button
Switches between recording and playback modes.
Recording Start/Stop Button
: Video Recording Start Button
: Video Recording Stop Button
: Still Image Recording Button
LCD Monitor 3D/2D Display Switching Button
Switches the display on the LCD monitor between 3D and 2D. The image will be recorded in 3D even if the display on the LCD monitor is set to 2D.
Menu Button
Display Button
Use the
button to change the displays as shown below.Tap button
Displays appear for approximately 3 seconds with every tap.
Tap and hold button
Displays are fixed such that they do not disappear. After setting, the display button changes from to
.
Tap to release the displays.
Playback Screen (Video)
Parallax Adjustment Button
Adjusts the 3D effect when 3D images are displayed on the LCD monitor.
Recording/Playback Mode Button
Switches between recording and playback modes.
Index Screen Button
Delete Button
LCD Monitor 3D/2D Display Switching Button
Switches the display on the LCD monitor between 3D and 2D.
Menu Button
Operation Buttons

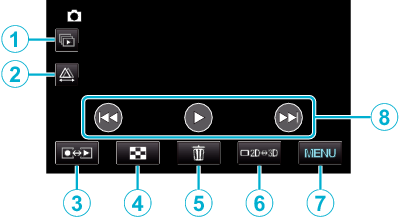

Playback Screen (Still Image)
Group Playback Button
Continuous playback of grouped files (such as still images captured by continuous shooting).
Parallax Adjustment Button
Adjusts the 3D effect when 3D images are displayed on the LCD monitor.
Recording/Playback Mode Button
Switches between recording and playback modes.
Index Screen Button
Delete Button
LCD Monitor 3D/2D Display Switching Button
Switches the display on the LCD monitor between 3D and 2D.
Menu Button
Operation Buttons
Index Screen
Date Button
Recording/Playback Mode Button
Switches between recording and playback modes.
Index Screen Switching Button (Still image only)
Switches between the group or full index screen displays.
Delete Button
Playback Media Button
Switches between SD card and built-in memory.
Menu Button
