Adjusting the Lens According to the Projection Position
TOP

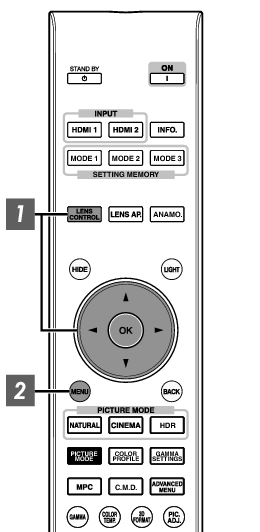

Press the [LENS CONTROL] button, and use the [

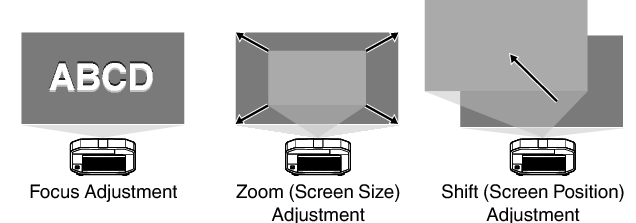

] keys to adjust Focus, Zoom (screen size), and Shift (screen position)
] keys to adjust Focus, Zoom (screen size), and Shift (screen position)

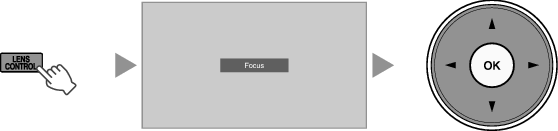

Pressing the [LENS CONTROL] or [OK] button each time switches the mode in the following sequence: “Focus”
“Zoom” “Shift” “Focus”...
Operation of the lens control feature is disabled when the lens lock is set to “On”.
For more detailed information, please refer to Lens ControlLINK.
Press the [MENU] button once, or the [BACK] twice, to end adjustment
