Adjusting the Output Value of the Projected Image (Gamma)

TOP

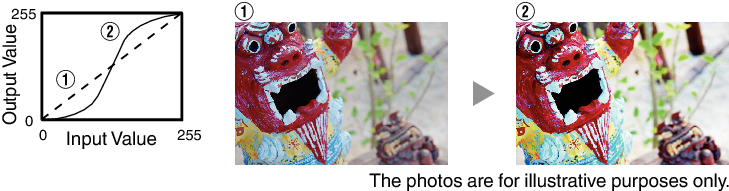

You can adjust the output value of the projected image with respect to the video signal input.

The overall image appear brighter with respect to the original image, making the dark areas more visible.

Increases the contrast with respect to the original image, creating a greater sense of depth.

Press the [GAMMA] button

Pressing the [GAMMA] button each time switches the setting in sequence.

You can also perform the setting by pressing the [MENU] button to display the menu followed by selecting “Picture Adjust” “Gamma”.

The selectable “Gamma” settings vary according to “Picture Mode”.

“Gamma”

Gamma		Description
When “Color Profile” is set to “Film 1”	Film 1	Image is close to the characteristics of Eastman Kodak Company movie films.
When “Color Profile” is set to “Film 1”	Film 2	Places more emphasis on the gradation compared to the “Film 1” setting.
When “Color Profile” is set to “Film 2”	Film 1	Places more emphasis on the contrast compared to the “Film 2” setting.
When “Color Profile” is set to “Film 2”	Film 2	Image is close to the characteristics of FUJIFILM Corporation movie films.
2.2		The gamma is set to “2.2”, “2.4” and “2.6” respectively.
2.4
2.6
Cinema 1		Places emphasis on the gradation.
Cinema 2		Places emphasis on the contrast.
HDR(ST.2084)		Suited for viewing HDR content such as UHD BD (HDR10).
HDR(Hybrid Log)		Suited for viewing HDR content such as HDR broadcast and streaming sources.
THX		Video of the THX standard.
Custom 1 to Custom 3		Enables fine adjustment of gamma according to preference.

Picture Mode	Gamma
Film	Film 1
	Film 2
	Custom 1 to Custom 3
Cinema Natural HDR User 1 to User 6	2.2
	2.4
	2.6
	Cinema 1
	Cinema 2
	HDR(ST.2084)
	HDR(Hybrid Log)
	Custom 1 to Custom 3
THX	THX
