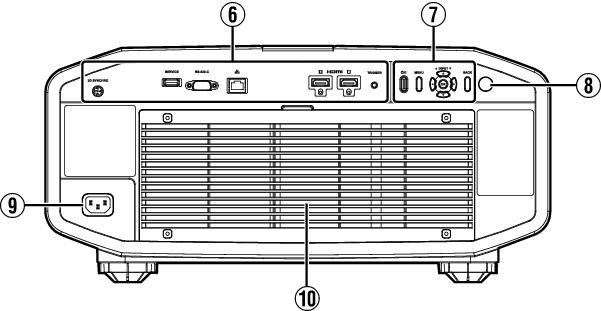

Main Unit - Rear

In addition to the video input terminal, there are also other connection terminals for devices such as controllers and optional equipment.

Please see Main Unit - Input TerminalsLINK for more details about the terminals.

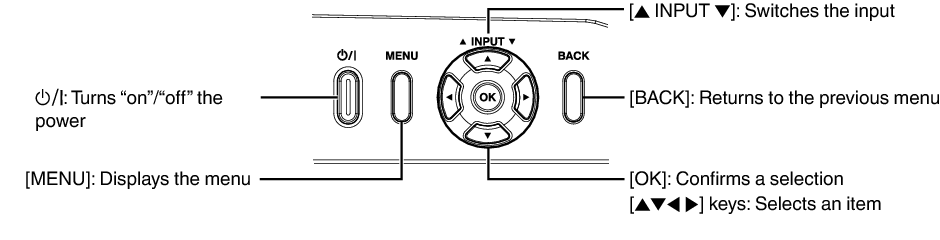

For more details, please refer to the Operation panelLINK in the diagram below.

Please aim the remote control at this area when using it.

Connect the supplied power cord to this terminal.

The inlets take in air to cool down the internal temperature.
Do not block the inlet. Do not blow hot air on the inlet. Doing so may cause the unit to malfunction.
